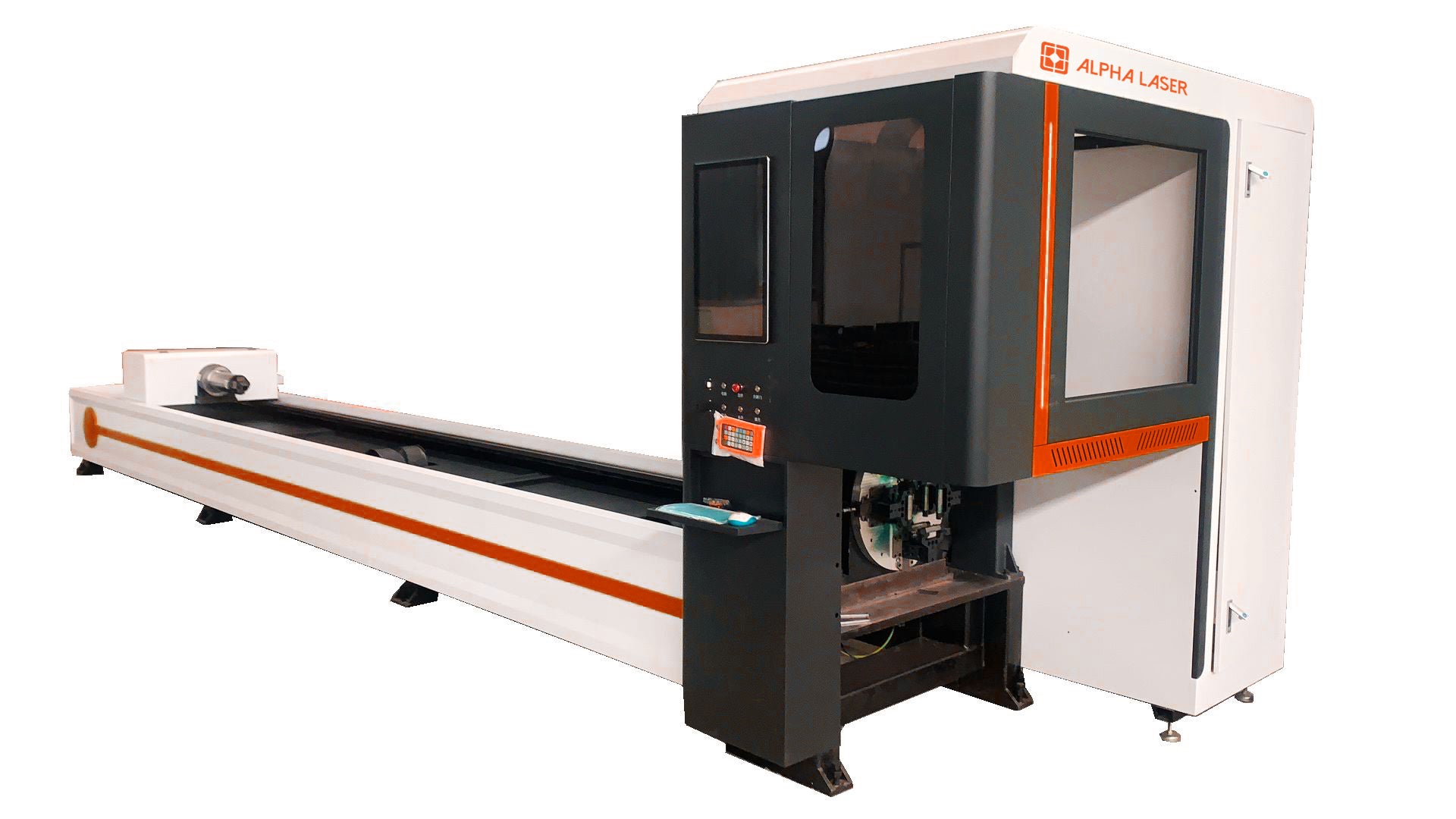

6022P Fiber Laser Tube Cutter

• FSCut tube laser cutting software
• Up to 220x220mm

• 3KW/6KW Maxphotonics laser
• Raytools autofocus laser cutting head
• Cut up to 12mm wall thickness pipe
• Industrial water chiller
• Compact footprint: 2350x4500mm

Specifications:

• Model: AL6022P
• Pipe Length: 6000mm
• Pipe Diameter: 20-220mm (up to 220x220mm square tube)
• Dimension: 3073x4977x2400mm
• Laser Power: Maxphotonics 3KW/6KW
• Positioning Accuracy: ±0.05mm
• Repetitive Accuracy: ±0.03mm
• Maximum Speed: 80m/min
• Power: 3 Phase 415V/50Hz /100-160A
• Machine Weight: 3500KG
• Laser Head: Raytools
• Software: Cypcut TubePro pipe cutting software

2 Years Warranty
