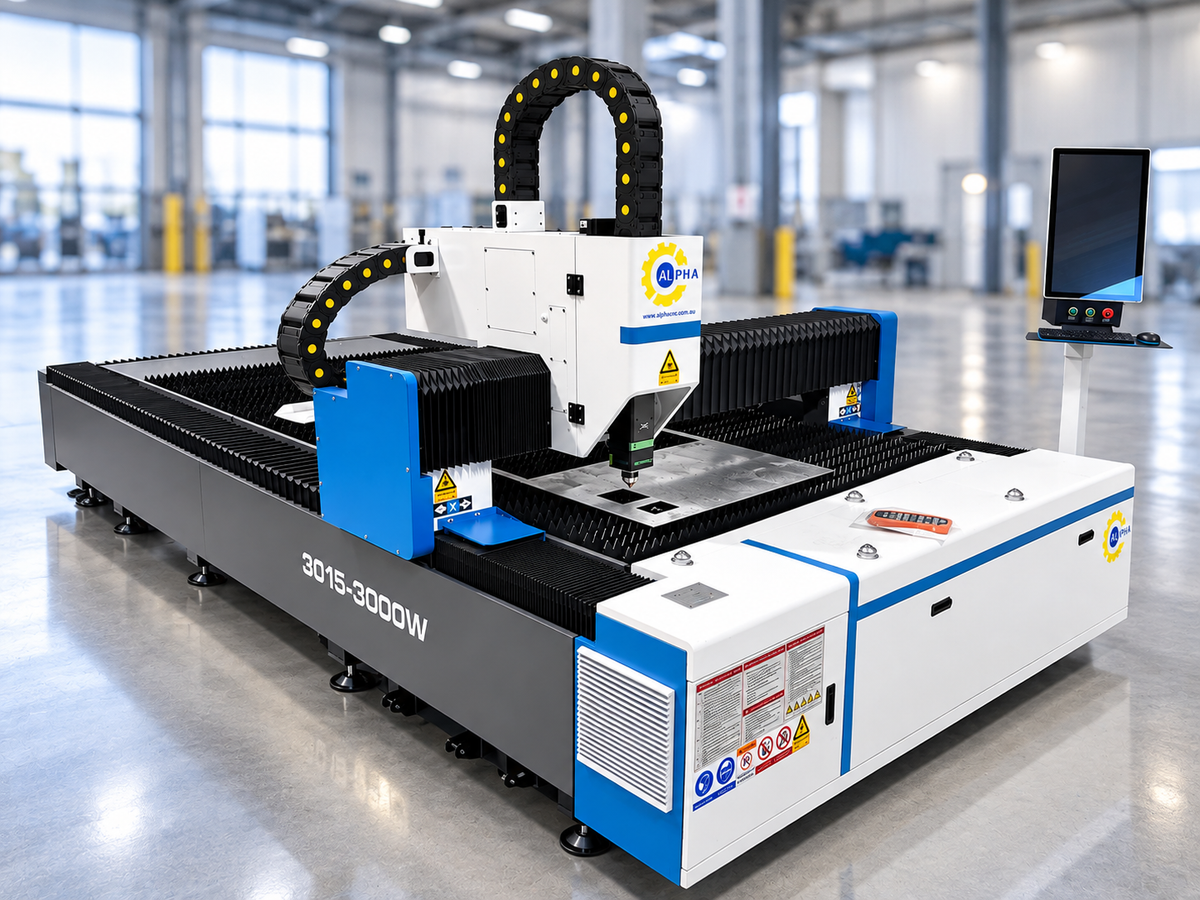

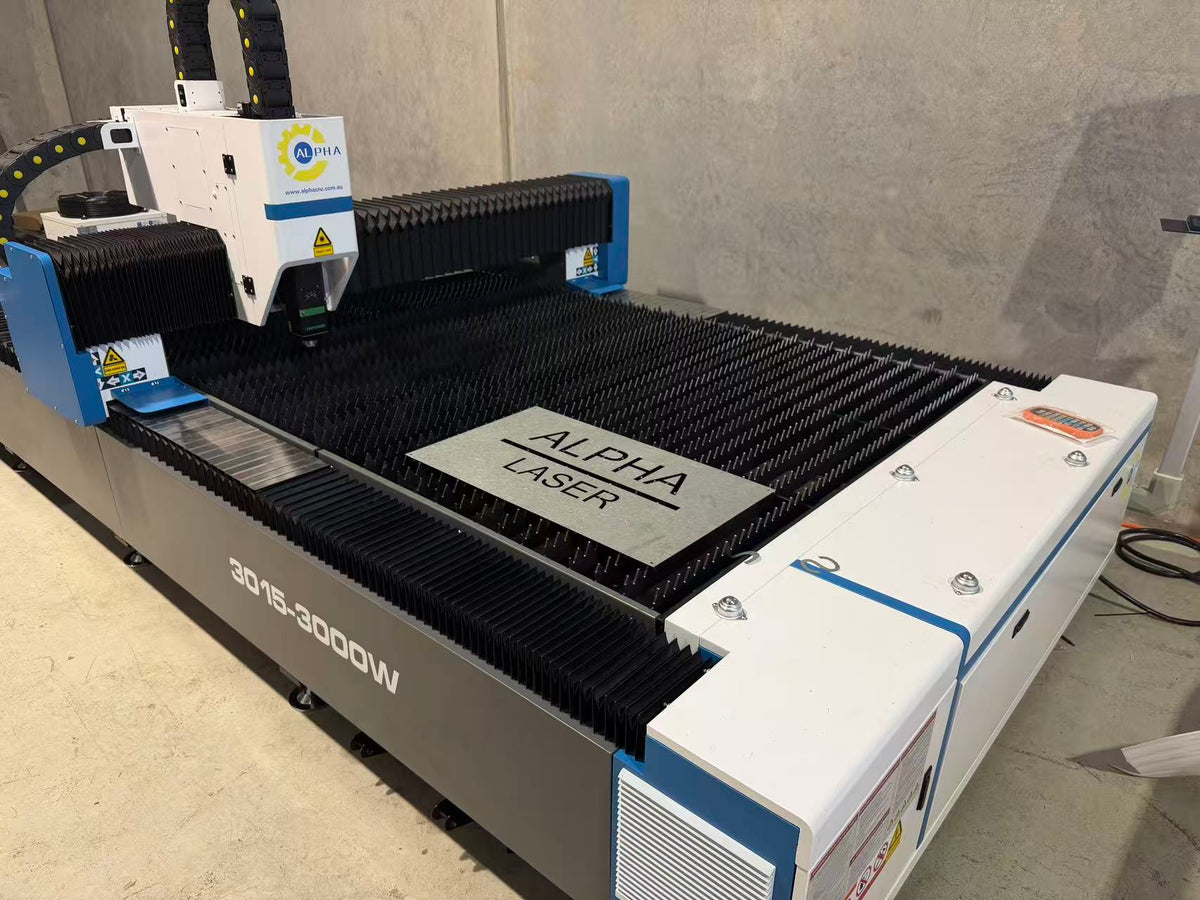

Alpha Laser Cutting Machine 3015L with 3KW laser - Demo Sale
Alpha Laser Cutting Machine 3015L with 3KW laser - Demo Sale
US$13,950 Fob China - 2 years warranty
Specifications
- 3kW Raycus fiber laser source
- 1500 x 3000mm cutting area
- Cutting capacity (reference only):
- Up to 8mm stainless steel
- Up to 16mm mild steel
- Up to 8mm aluminium
- Up to 6mm brass
- Windows-based 2Dcut CNC controller – easy connection to factory network
- Leadshine servo motors
- Hiwin linear rails
- Shimpo reducer with rack and pinion drive
- Raytools BS03K autofocus laser cutting head
- Easy installation and commissioning
Product Features

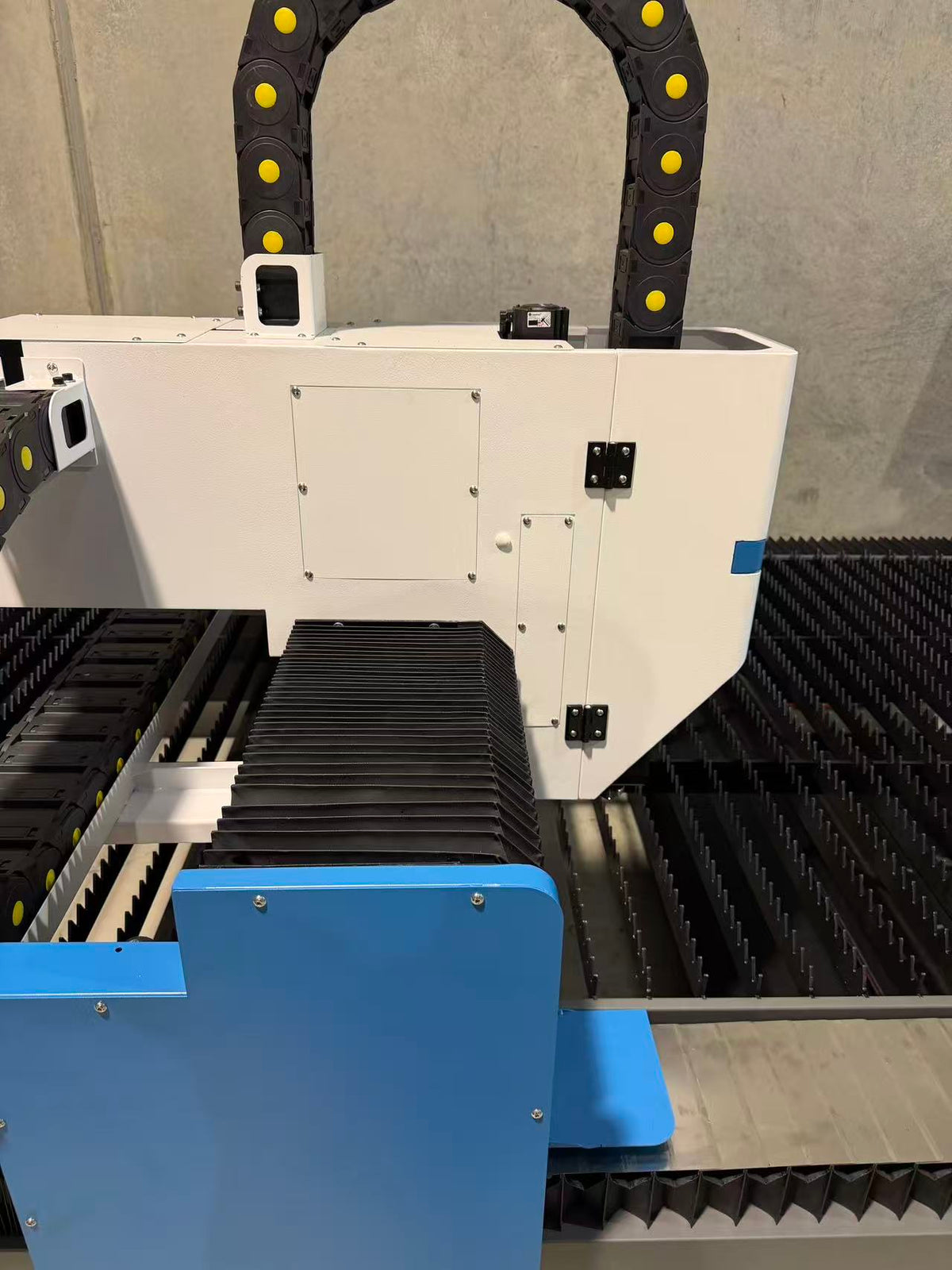

Pipe Welding Frame
The whole machine frame is welded from heavy-duty pipe and machined on a high-accuracy CNC gantry machining centre. A 600°C stress relief heat treatment is performed on the frame, giving the Alpha laser cutting machine a service life of up to 20 years without mechanical distortion.
Raytools BM110 Laser Head
Cost-effective smart cutting head designed for 2D, 3D and bevel cutting. It delivers stable cutting performance with simple installation and setup and is suitable for power levels up to 8kW.

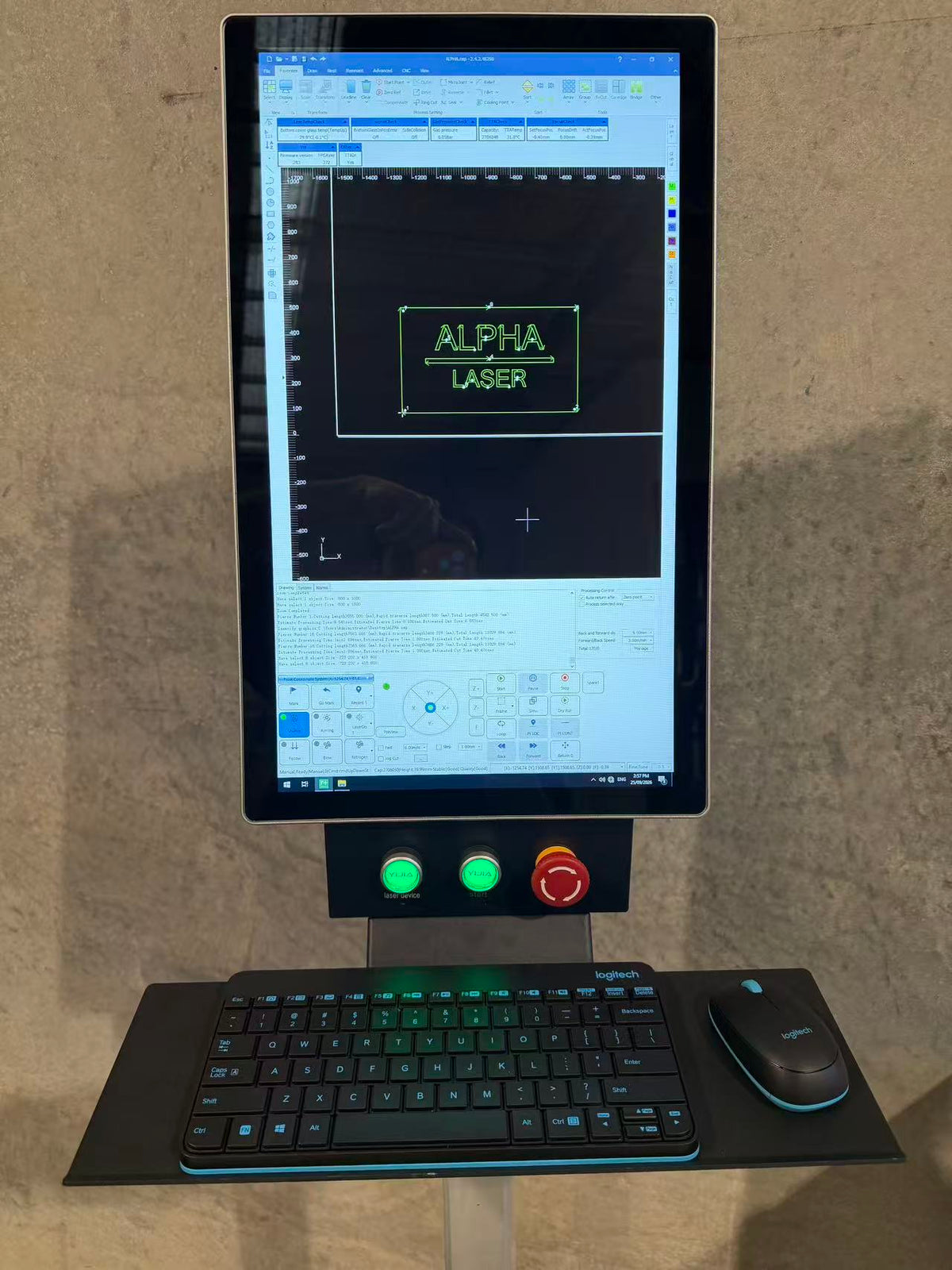

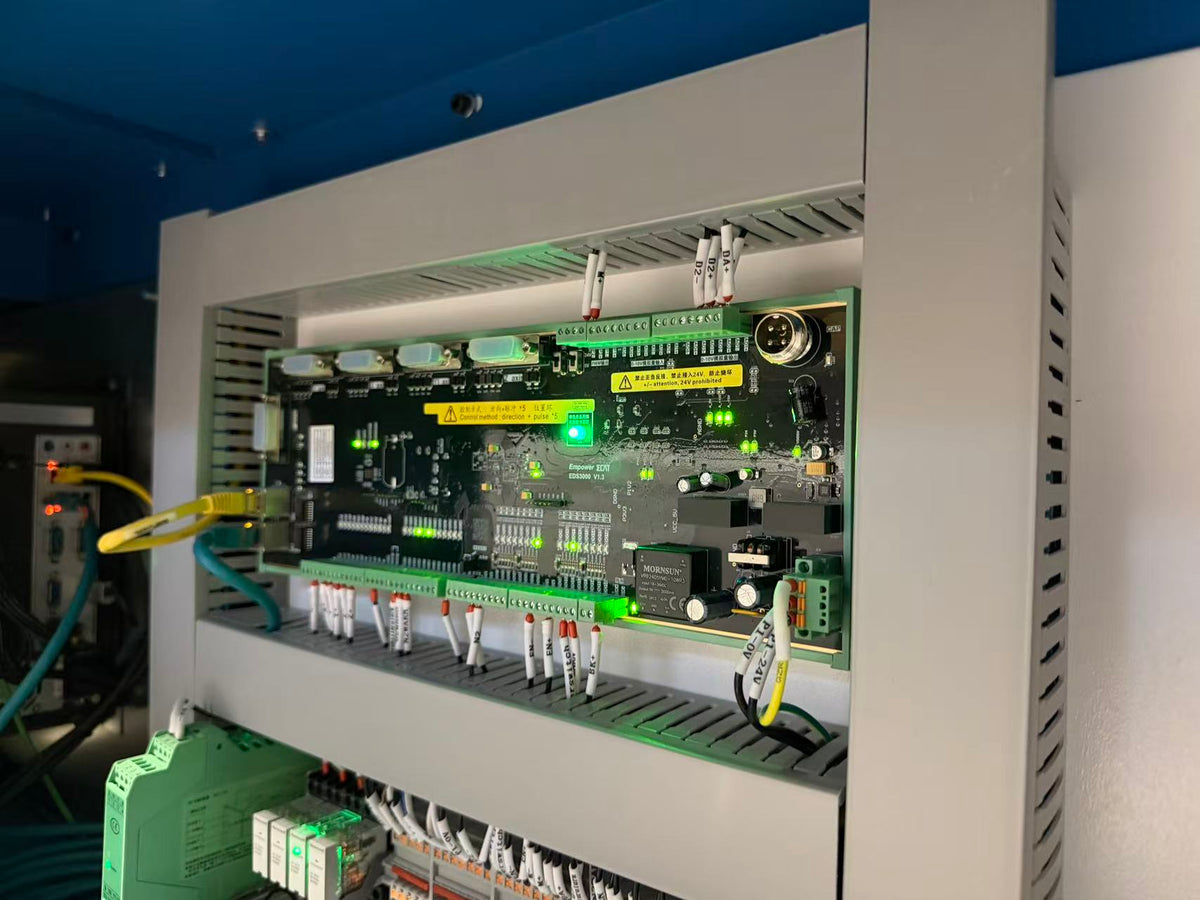

2DCut Ahead CNC Controller
2DCut Ahead cutting software is an EtherCAT medium-power cutting system. It is easy to use, feature-rich, stable and reliable. Advanced functions include Smooth MicroJoint, Speedy Piercing, integrated QR scanner and Circle Center calibration to meet a wide range of processing needs.
Specification
| Model | 3015L |
|---|---|
| Cutting Table Size | 1500 x 3000mm |
| X-axis Travel | 3000mm |
| Y-axis Travel | 1500mm |
| Z-axis Travel | 80mm |
| Laser Power | 1.5kW / 2kW / 3kW |
| Positioning Accuracy | ±0.05mm |
| Repeat Accuracy | ±0.03mm |
| Rapid Speed | 80m/min |
| Power Requirement | 3-phase 380V / 50Hz (32A per phase) |
| Machine Weight | 1200kg |
| Overall Dimensions (L x W x H) | 4300 x 2470 x 1580mm |
| Laser Source | Raycus fiber laser 3kW |
| Laser Head | Raytools BS03K autofocus laser head |
| CNC Controller | 2DCut Ahead PC-based CNC – easy integration into factory network |

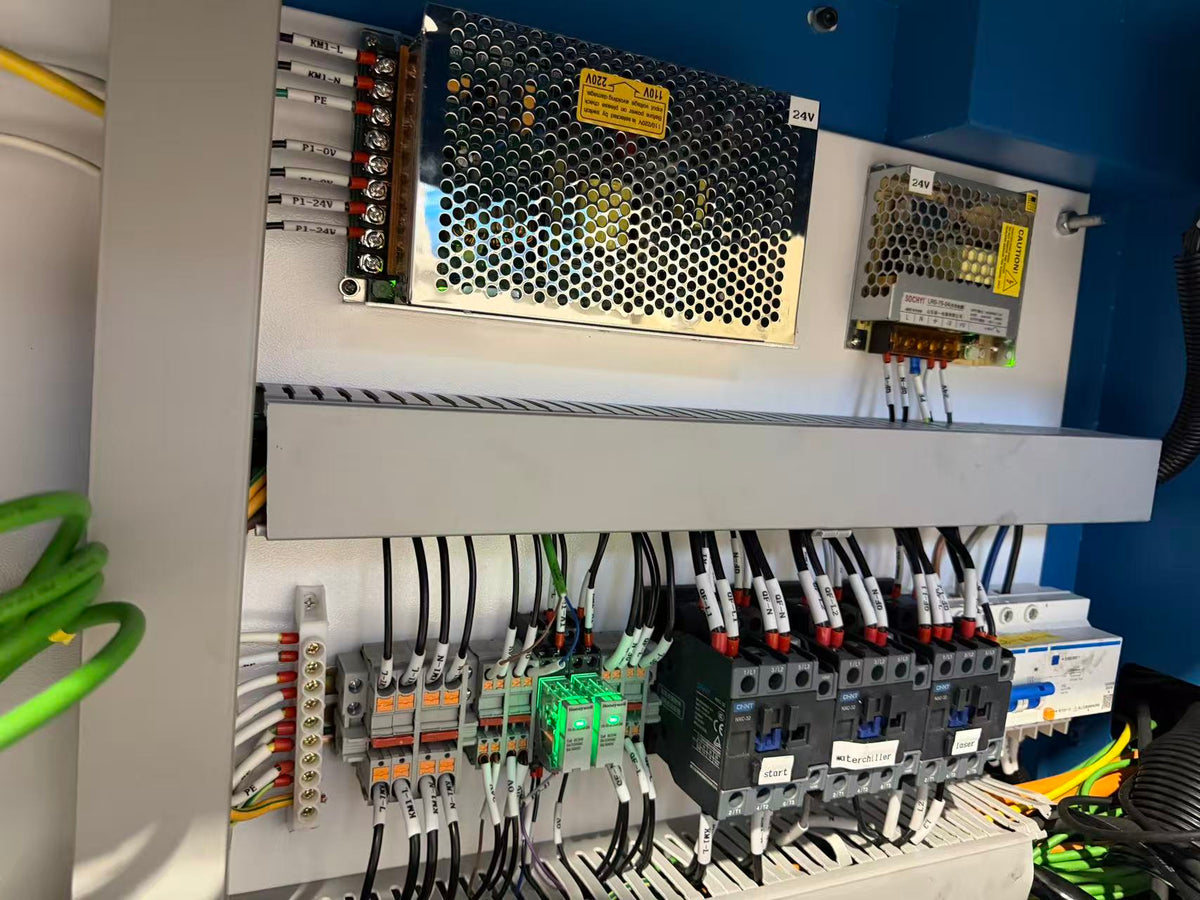

| Electrical Components | Schneider |
| Machine Frame | 3015L welded frame |
| Water Chiller | Industrial chiller specialised for 3kW fiber lasers |
